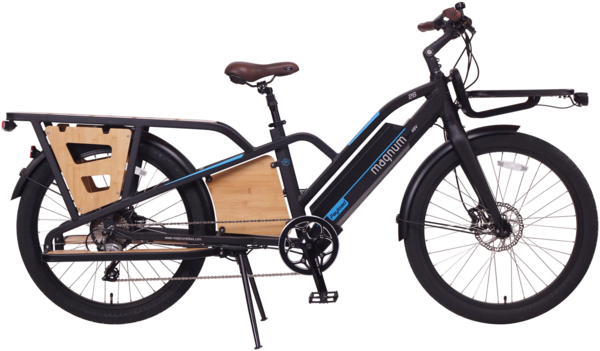

The pickup truck of electric bikes! The Payload can handle all of the things you might do with a truck: running errands, grocery shopping, even taking a child passenger along with you. Built for utility, strength and reliability.

- The Payload's large, 48W battery can handle all the demands of a cargo bike, and it will power a range of up to 60 miles, depending on cargo weight, wind and terrain variables.

- Secure heavy loads directly to your bike.
- The Payload's stout, integrated rear carrier is a part of the frame itself, so it can handle heavy loads or accommodate an extra child passenger (child seat not incl.). Max load capacity: 179 lbs (81 kg)

*Recommended Minimum Rider Height: 5'5"

SIZEOne Size
Seat Tube (mm) 440
Reach (mm) 450
Stand Over Height (mm) 615
Virtual Top Tube Length (mm) 590
Min Saddle Height (mm) 590
Max Saddle Height (mm) 720
Width (mm) 630
Wheelbase (mm) 1350
Length (mm) 2090


Frame Aluminum Alloy
Fork Rigid Aluminum Alloy
Tires CST, 26 x 2.4
Crankset Promax, Aluminum Alloy, 48T, 170mm
Shifters Shimano 8-Speed
Rear Derailleur Shimano 8-Speed
Cassette/Freewheel Shimano 8-Speed
Chain KMC
Brakes Tektro Hydraulic Disc Brakes
Tape/Grips Ergonomic Faux Leather
Stem Promax Alloy, Adjustable
Saddle Selle Royal, Brown
Pedals Wellgo
Accessories & Extras Front and Rear Fender Included
Motor Das-Kit Rear Hub-Drive 500 Watts
Battery 48 Volts 21Ah,1008Wh
Controller/Display Das-Kit C7, Backlit, Monochrome LCD

* Subject to change without notice.
