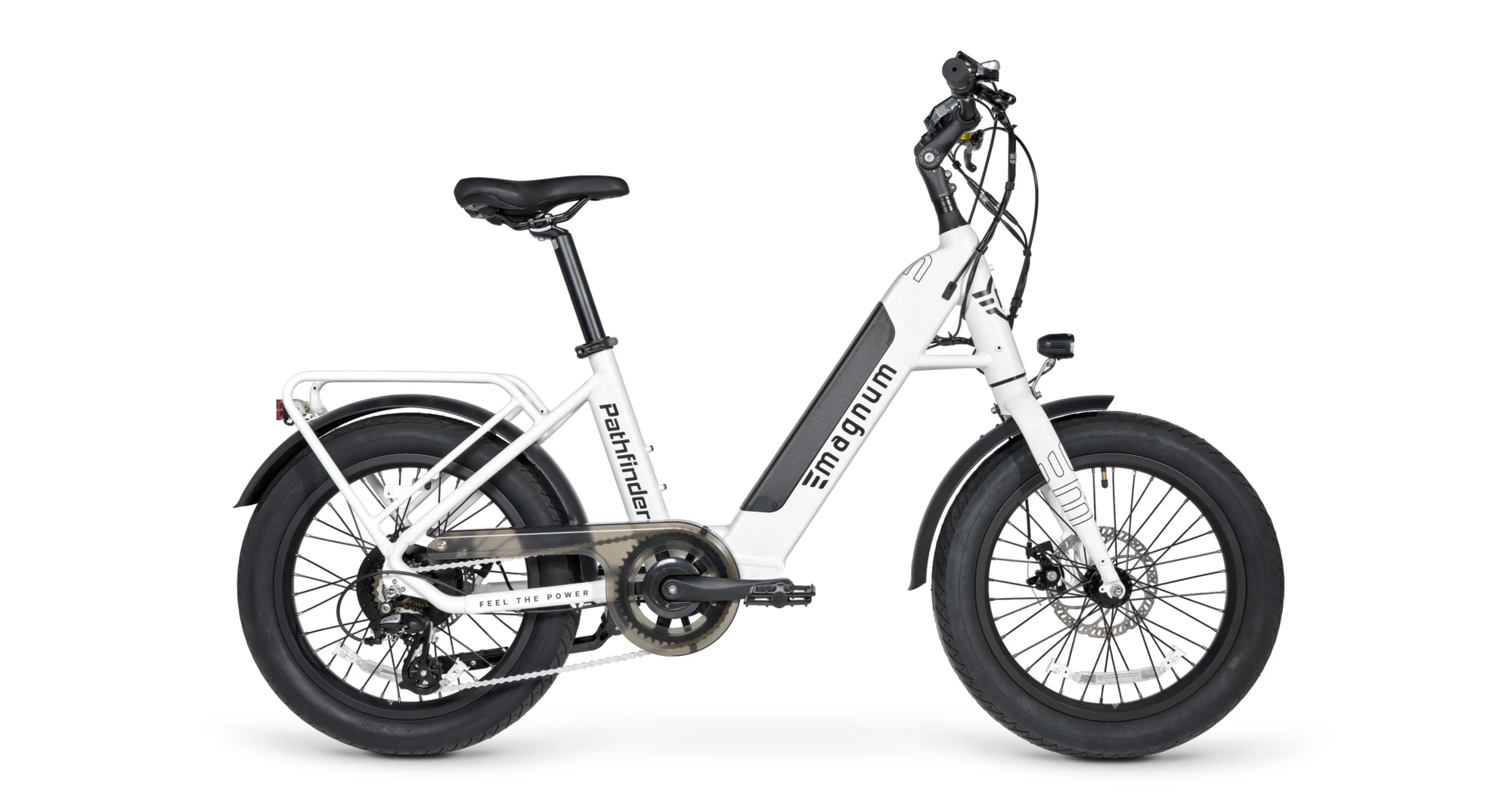

Magnum Bikes Pathfinder 350

Magnum Bikes Pathfinder 350
  • Color: Ocean
  • Color: Forest
  • Color: Snow
  • Color: Sand
Please select options Unavailable
Sorry, this item is currently not available.


Work hard and play harder! The Magnum Pathfinder 350 is an e-bike that suits your active lifestyle. Whether it's used for recreation, exercise, commuting, or for the pure joy of power-assisted movement, the unisex Magnum Pathfinder 350 with its step-through frame will match your physique and your skills, and exceed your expectations.

- Category: Fat Tire
- Class: Can be configured to a Class 1, 2, or 3 E-Bike.
- Frame Type: Low-step
- Seating: Relaxed
- Perfect For: Paved / Light Trails / Recreation

The heart of the Magnum Pathfinder 350 is the integrated, long-range 36V / 13Ah / 468Wh battery that powers up to 40 mile-long rides, depending on variables like body and cargo weight, terrain, wind direction, and pedal assist level.

40 Miles (64 Kilometers) Max Range
6.5 Hours Charge Time

20? x 3" Fat Tire Wheels

The Pathfinder’s 3" fat tires absorb shock and heighten stability. They will improve handling over unexpected pot holes and uneven pavement, providing extra traction, control, and comfort.

Seat Tube15.75" (40 cm)
Reach 17" (43 cm)
Stand Over Height 16" (40 cm)
Virtual Top Tube Length 24" (61 cm)
Min Saddle Height 20.5" (52 cm)
Max Saddle Height 29.5" (75 cm)
Width 24" (61 cm)
Wheelbase 43" (109 cm)
Length 63.75" (162 cm)
Total Weight 59 lbs (26.75 kg)
Battery Weight 7.5 lbs (3.4 kg)
Recommended Minimum Rider Height 4’10"


Fork Rigid Aluminum Alloy
Stem Adjustable Aluminum Alloy
Tires CST Big Boat 20" x 3"
Brakes Mechanical Disc Brakes
Saddle Velo Gel Comfort
Crankset Aluminum Alloy, 44T, 165mm
Shifters Shimano 7-Speed
Tape/Grips Flat Rubber, Pressure Fit, Half-Grip on Right for Twist Throttle
Accessories & Extras Rear rack, front and rear lights included, Includes Center-Mounted Single Side Adjustable Length Kickstand, Includes Bell, Accessory Mounts: Bottle Cage, Front Rack
Motor Rear Gear Hub-Drive Motor 350W Nominal Output. 25 mph with Pedal Assist, 20 mph with Throttle.
Pedals Wide Plastic Platform with Reflectors
Battery 36V, 13Ah, 468Wh
Charger 36V / 2A, 25-45miles per charge
Controller/Display Battery Charge Level (Infographic with 5 Bars), Current Speed, Assist Level (0-5, Class 1; 0-6, Class 2 & 3), Odometer, Trip Distance, Average Speed, Max Speed. Cadence Sensing Pedal Assist, Twist Throttle, Walk Mode.

* Subject to change without notice.
