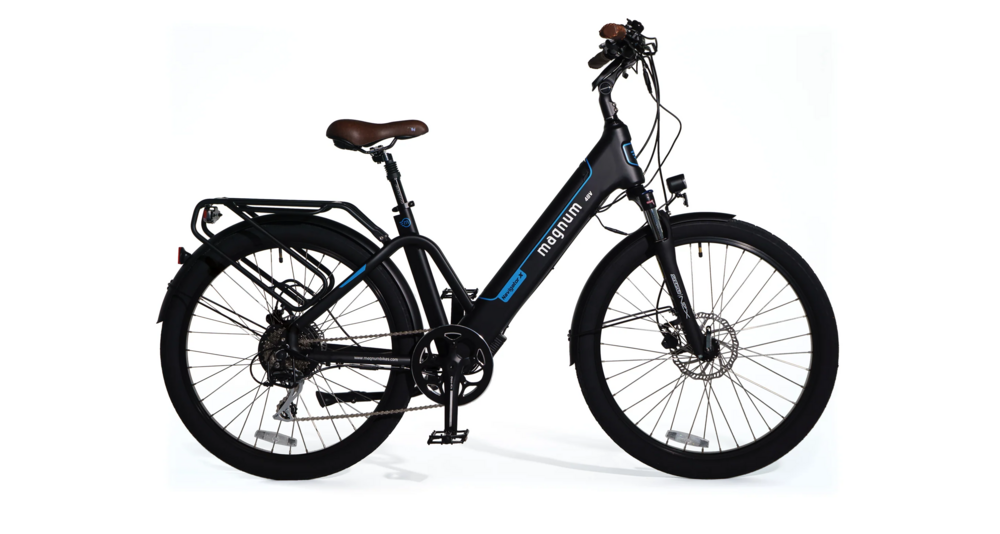

Magnum Bikes Navigator X
Details
A beautifully designed, purpose built electric bike well suited to urban riding or commuting. Step-thru frame for easy mounting and dismounting. Powerful 500W 48V power system with a fully integrated battery.
Highlights:
- Category: Touring
- Class: Can be configured to a Class 1, 2, or 3 E-Bike.
- Frame Type: Low-step
- Seating: Relaxed
- Perfect For: Paved / Light Trails / Recreation
THE BATTERY.
The heart of all Magnum bikes, the long-range battery blends in smoothly with the frame for a sleek look. It powers up to 50 miles depending on variables like body and cargo weight, terrain, wind direction, and pedal assist level.
12Ah
- 50 miles (80 Kilometers) Max Range
- 6.5 Hours Charge Time
SLEEK, LOW-STEP FRAME
Mount and dismount with ease.
The sleek, low-step frame is easy to mount and dismount, and is made of strong and lightweight aluminum.
| Seat Tube | 17” (43 cm) |
|---|---|
| Reach | 16.5” (42 cm) |
| Stand Over Height | 21” (53 cm) |
| Virtual Top Tube Length | 23.25” (59 cm) |
| Min Saddle Height | 23” (58 cm) |
| Max Saddle Height | 30” (76 cm) |
| Width | 25.75” (65 cm) |
| Wheelbase | 42.75” (108 cm) |
| Length | 69” (175 cm) |
| Total Weight | 59 lbs (26.75 kg) |
| Battery Weight | 8 lbs |
| Recommended Minimum Rider Height | 5’0” |
Specs
| Fork | SR Suntour NEX ATB 26” |
|---|---|
| Stem | Promax Tool-Free Adjustable |
| Tires | CST 26" x 2.25" |
| Brakes | Tektro Hydraulic Disc Brakes |
| Saddle | Selle Royal Brown Freeway |
| Crankset | Das-Kit Aluminum Alloy |
| Shifters | Shimano 8-Speed |
| Tape/Grips | Ergo Brown Faux Leather |
| Accessories & Extras | Rear rack, front and rear lights included, Bell: Included, Fenders: Front and Rear |
| Motor | Das-Kit Rear Gear Hub-Drive Motor 500W Nominal Output. 25 mph with Pedal Assist, 20 mph with Throttle. |
| Pedals | Wellgo |
| Battery | 48V, 12Ah, 576Wh |
| Charger | 25-40miles per charge. |
| Controller/Display | Das-Kit C7, Backlit, Monochrome LCD. Power Output Indicator(6 Bars), Battery Level (6 Bars), Speed, Assist Level (0-6), Odometer, Trip Distance, Trip Time, Battery Voltage.Cadence Sensing Pedal Assist, Trigger Throttle, Walk Mode. |
* Subject to change without notice.
Videos
Part Numbers
| Option | UPC | Store SKU |
|---|---|---|
| Black/Blue / Large / 26-inch | 789554756051 | 210000000560 |
| Black/Silver / Large / 26-inch | 789554755818 | 210000000559 |
| White/Blue / Large / 26-inch | 745808932688 | 210000000558 |
