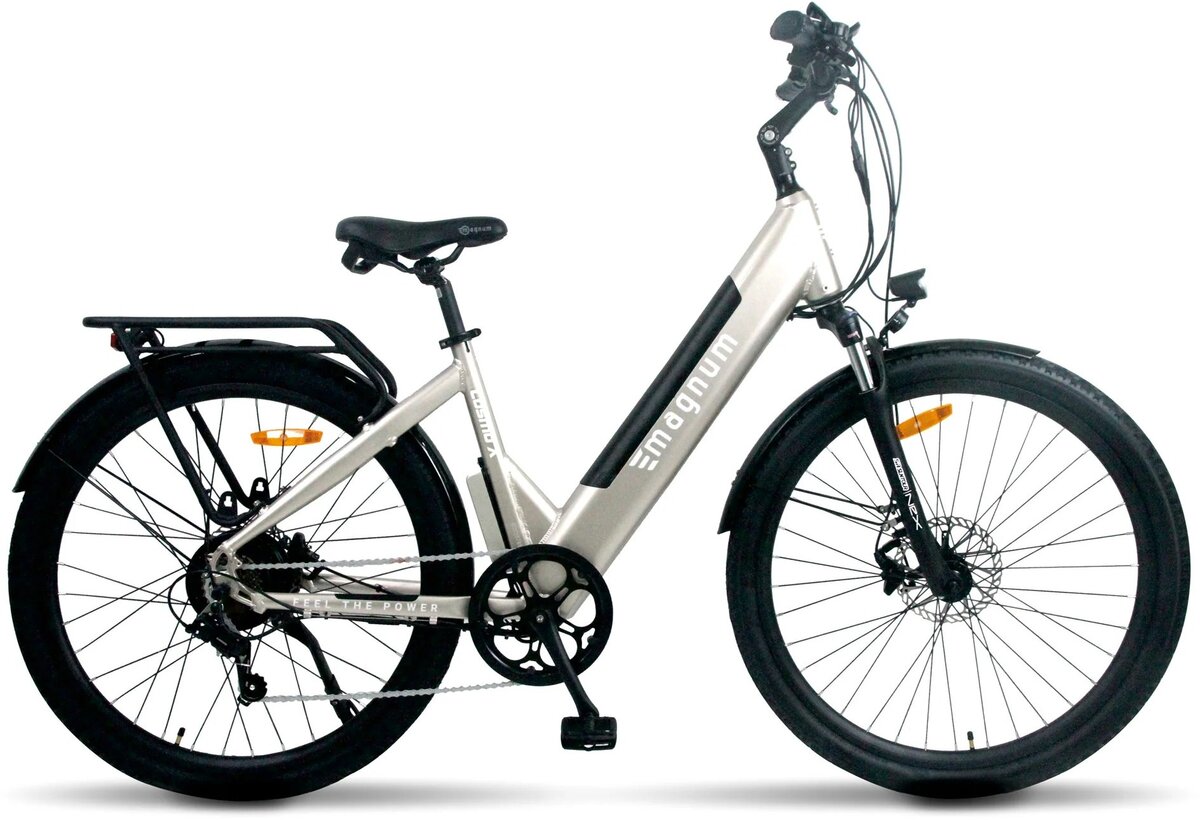

Magnum Bikes Cosmo X

Magnum Bikes Cosmo X
Please select options Unavailable
Sorry, this item is currently not available.


The Magnum Cosmo X is the top of range in our popular Cosmo series, featuring a light low-step frame, a fully integrated battery and hydraulic disc brakes. The power system is 48 Volts running on a 500 Watt motor and a 15Ah battery for the range and power you need to run errands or go on a relaxing bike ride.

- Category: Touring
- Class: Can be configured to a Class 1, 2, or 3 E-Bike.
- Frame Type: Low-step
- Seating: Relaxed
- Perfect For: Paved / Light Trails / Recreation

Long-range (up to 50 miles) battery for the freedom and power to tackle longer rides.

50 miles (80 Kilometers) Max Range
7.5 Hours Charge Time

Easily mount and dismount with Low-step geometry.

Designed and built with the city and commuter cyclist in mind, the low-step frame design is a breeze to mount and dismount, and it comes in stylish colors with a sleek, integrated battery.

Seat Tube18" (46 cm)
Reach 14.75" (37.5 cm)
Stand Over Height 22.5" (57 cm)
Virtual Top Tube Length 22" (56 cm)
Min Saddle Height 21.75" (55 cm)
Max Saddle Height 28" (71 cm)
Width 25.75" (65 cm)
Wheelbase 44" (112 cm)
Length 70.5" (179 cm)
Total Weight 60.5 lbs (27.5 kg)
Battery Weight 8.5 lbs (3.9 kg)
Recommended Minimum Rider Height 5'0"


Fork NVX SR Suntour with adjustable preload
Stem Adjustable Alloy
Tires Kenda K1164 26” x 2.35”
Brakes Clarks Hydraulic Disc Brakes
Saddle QF Saddle Black
Crankset Aluminum Alloy, 52T, 170mm
Shifters Shimano 7-Speed
Tape/Grips Ergonomic Faux Leather Black
Accessories & Extras Rear rack, front and rear lights included, Kickstand: Single-Leg, Fenders: Front and Rear Included
Motor Bafang Rear Hub-Drive 500W Nominal Output. 25 mph with Pedal Assist, 20 mph with Throttle.
Pedals Wellgo
Battery 48V, 15Ah, 720Wh
Charger 48v / 2A, 25-50miles per charge
Controller/Display Magnum Branded VeloFox, 8 x 7 cm. Display Screen, Backlit Monochrome LCD. Battery Level, Assist Level, Current Speed, Power Output, Trip Distance, Odometer, Range, Trip Time. Cadence Sensing Pedal Assist, Trigger Throttle, Walk Mode.

* Subject to change without notice.
